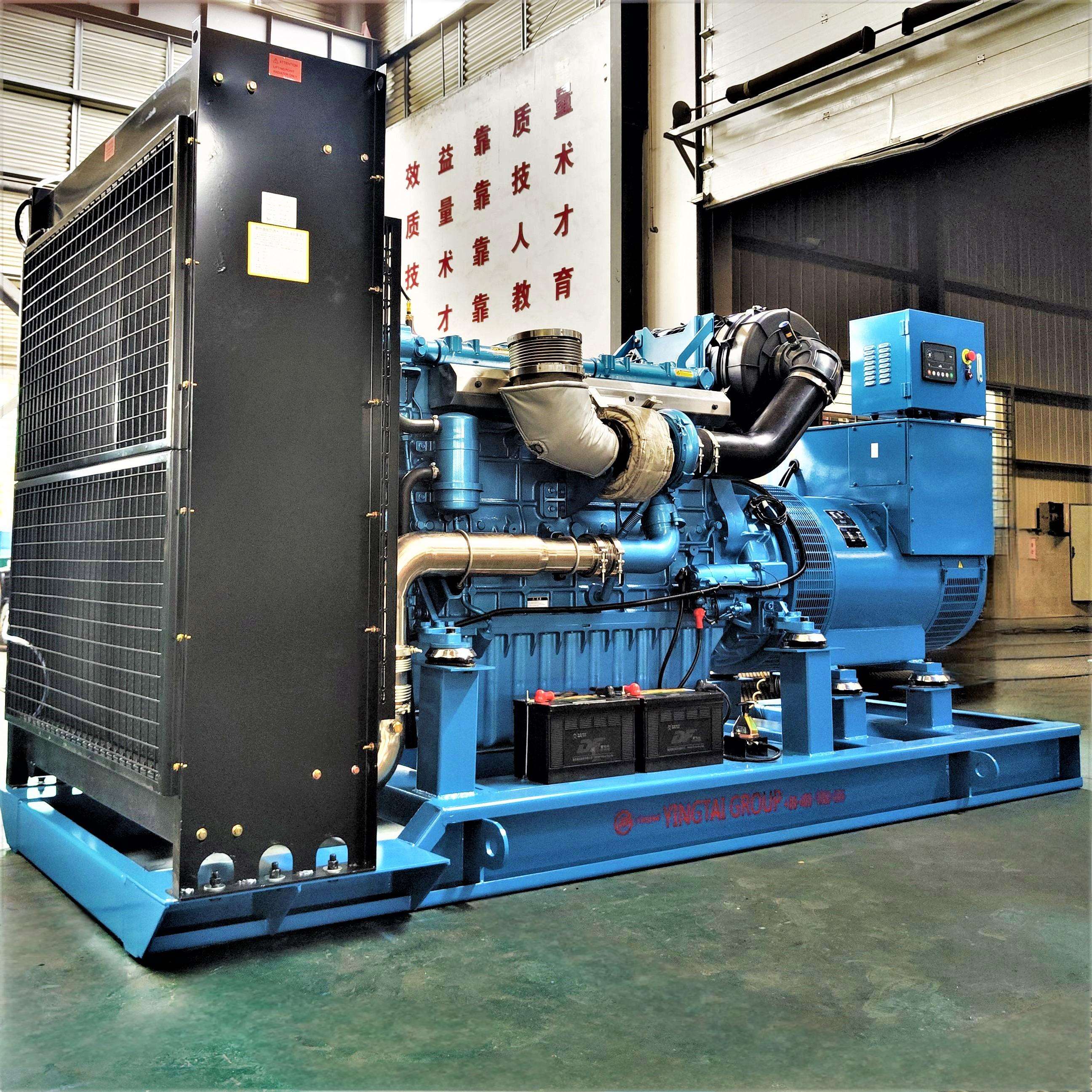

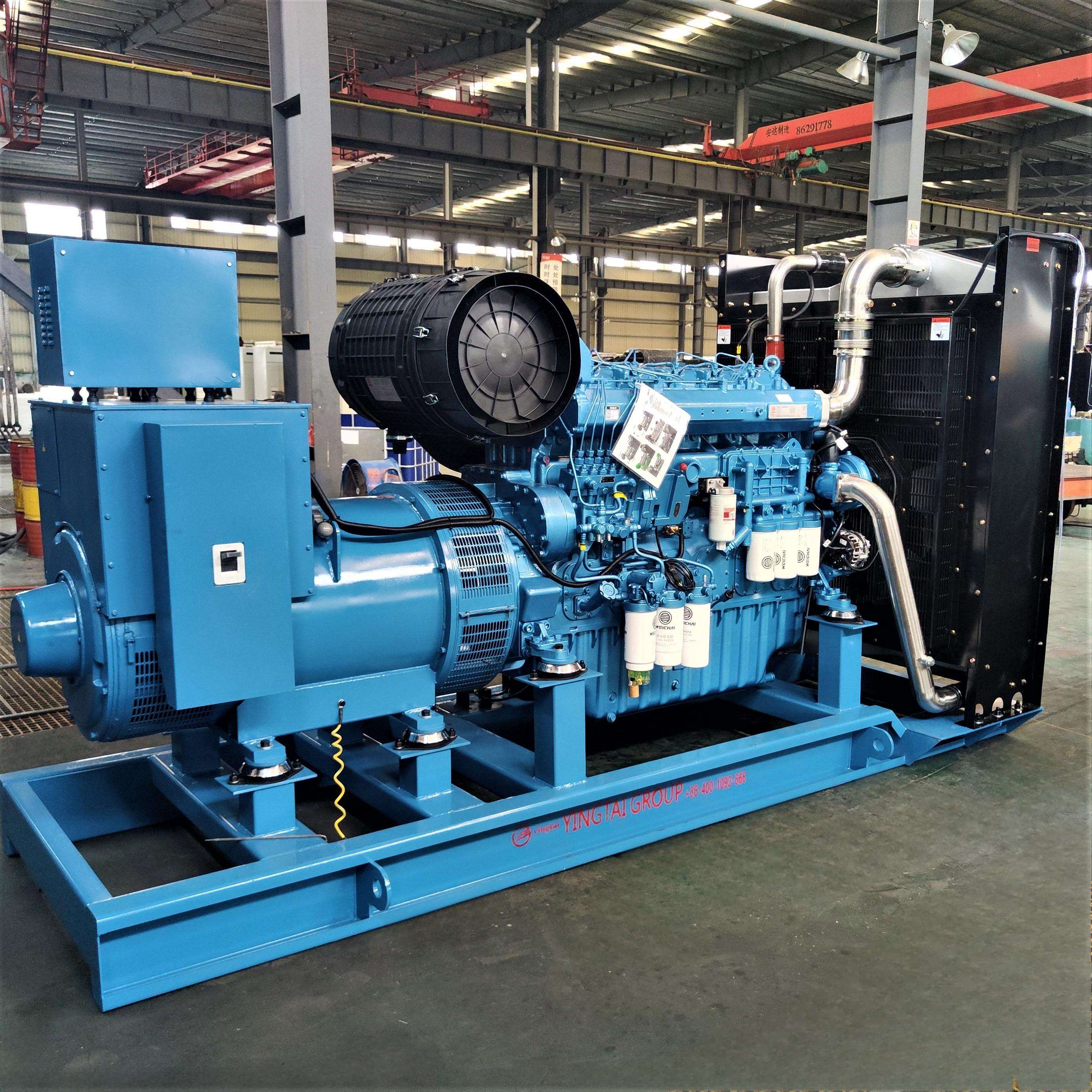

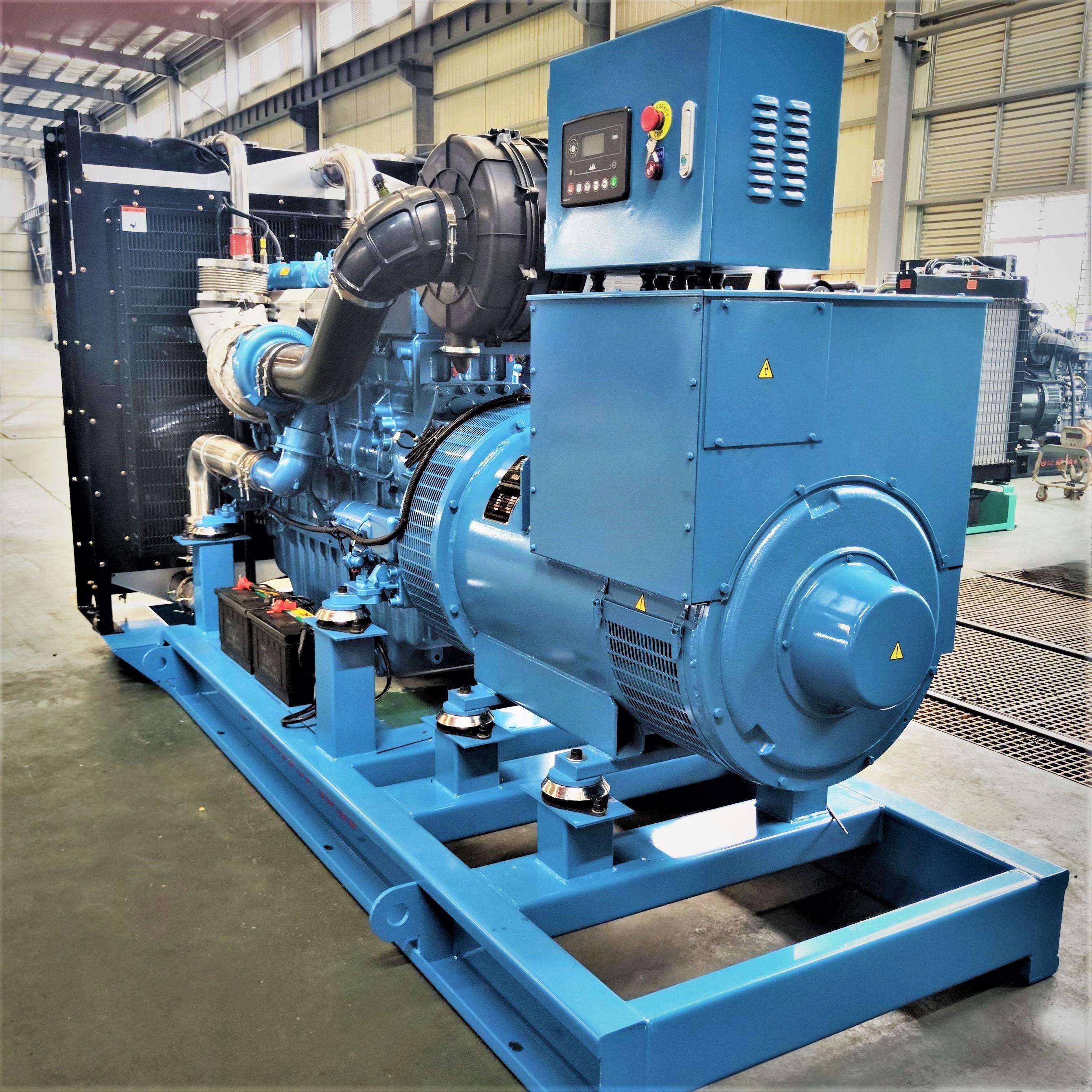

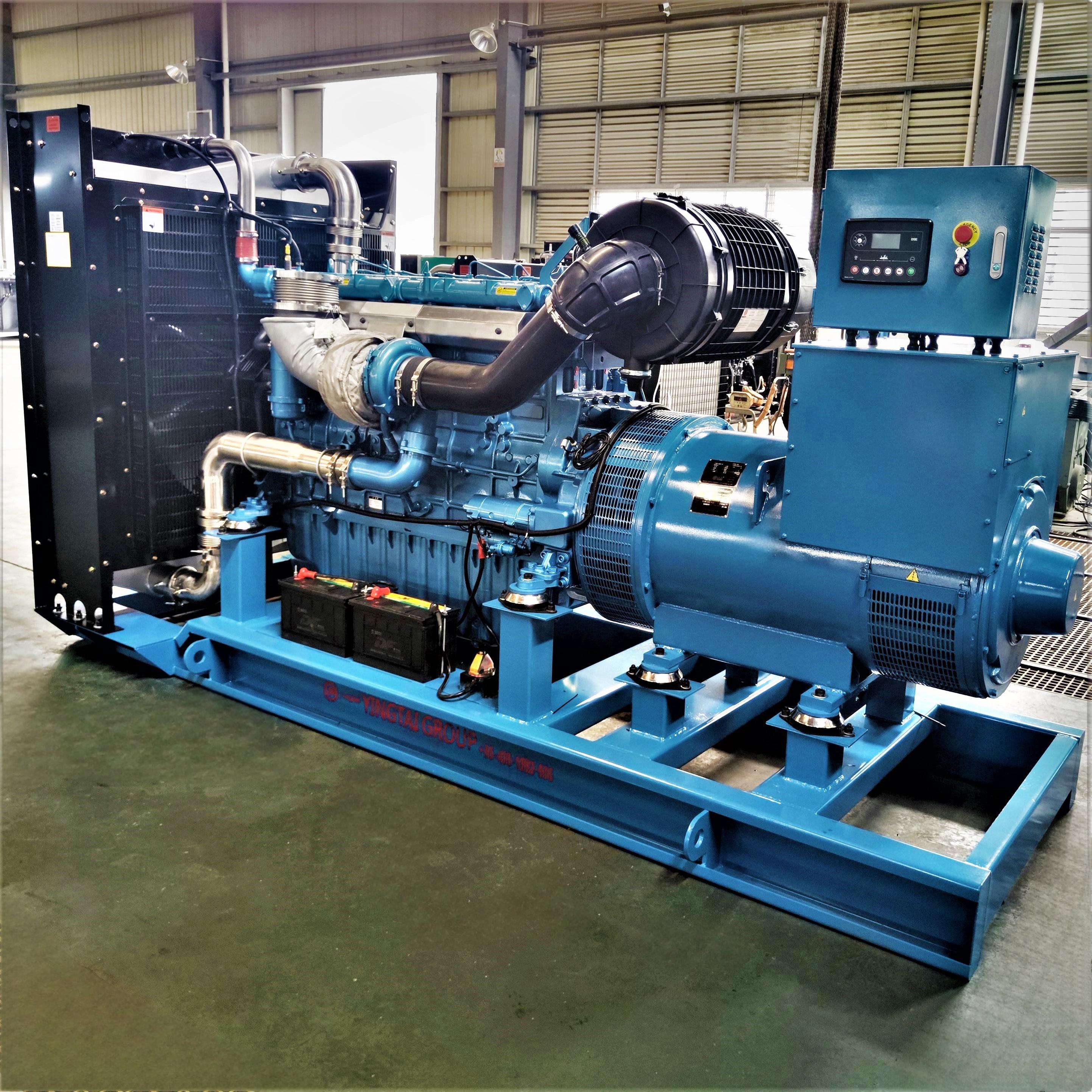

GensetPlus 80KW/100KVA DIESEL GENERATOR SET WITH BAUDOUIN ENGINE FEATURES
-
Brand new original Baudouin 4M10G6D3/5 EU Stage III water-cooled diesel engine with advanced combustion technology and emissions control, delivering consistent power output while meeting stringent European environmental regulations for reduced particulate matter and NOx emissions.
-
Engine: Brand new BAODOUIN 4M10G6D3/5 water-cooled diesel engine certified to EU Stage III emissions standards for reliable, environmentally compliant power generation.
-
Alternator: Premium single-bearing alternator with 100% copper windings and brushless technology from STAMFORD, LEROY SOMER, or GensetPlus—engineered for extended service life and minimal maintenance.
-
Cooling System: Efficient 50℃ radiator with engine-driven fan assembly mounted securely on the base frame for consistent thermal management during continuous operation.
-
Electrical Output: 380/400/415V three-phase, four-wire configuration at 50Hz, 1500RPM with 0.8 power factor. IP23 enclosure protection and H-class insulation ensure safety and durability in industrial environments.
-
Circuit Protection: Original MCCB-type main circuit breaker from ABB, DELIXI, or CHINT provides reliable overcurrent and short-circuit protection.
-
Starting System: 24V DC electric start with maintenance-free lead-acid battery and integrated float charger for dependable cold-start capability and extended battery performance.
-
Control & Monitoring: Integrated control panel with digital controller options—DEEPSEA, COMAP, DEIF, or SMARTGEN—delivering real-time system monitoring and automated operation management.
-
Vibration Isolation: Engine and alternator assembly mounted on base frame with anti-vibration isolators to reduce operational noise and structural stress.
-
Noise Reduction: Industrial-grade silencers with flexible connections and directional elbows minimize acoustic emissions during operation.
-
Compliance: Full CE certification, ISO9001:2015 quality assurance, and EU Stage III environmental approval for regulatory compliance and operational confidence.
-
Safety: Complete engine alarm system continuously monitors critical parameters and alerts operators to potential issues in real-time.
Specifications
| Open Type Model |
GBD100D5 |
| Silent Type Model |
GBD100S5 |
| Prime Power |
80KW/100KVA |
| Standby Power |
88KW/110KVA
|
| Phase & Wire |
3 Phase, 4 Wires |
| Power Factor |
0.8 |
| Frequency |
50Hz |
| Rated Power |
220/380V, 230/400V, 240/415V |
| Fuel Tank Capacity |
150L |
BAUDOUIN DIESEL ENGINE
| Model |
BAUDOUIN 4M10G6D3/5 |
| Aspiration System |
Turbocharged, After-Cooled |
| Cooling Method |
Water Cooled |
| Governor Type |
ECU |
| Bore x Stroke |
105 x 118 mm |
| Compression Ratio |
17.5:1 |
| Rated Speed |
1500 RPM |
| Displacement |
4.087L |
| Rated Power |
90KW |
| Standby Power |
100KW |
| Fuel System |
High-pressure common rail |
| Oil Capacity |
14L |
| Coolant Capacity |
23.6L |
| Electric Starting System |
DC 24V |
| Cylinder Number |
4 |
FUEL CONSUMPTION
| 100% Prime Load |
21.3L/H |
| 75% Prime Load |
16.0L/H |
| 50% Prime Load |
10.6L/H |
| 25% Prime Load |
6.0L/H |
ALTERNATOR
| Number of Phase |
3 |
| Rated Power |
80KW/100KVA |
| Frequency |
50Hz |
| Power Factor |
0.8 |
| Poles |
4 |
| Temp. Rise |
125K |
| Terminals |
12 |
| Insulation Type |
H Class |
| Ambient Temo. |
40℃ |
| IP Rating |
IP23 |
| Excitation System |
Self-Excited |
| Bearing |
Single Bearing |
| Coating |
Vacuum Impregnation |
| Voltage Regulator |
A.V.R |
| Coupling |
Flexible Disc |
CONTROL PANEL
- Emergency stop button
- Main circuit breaker
- Float baterry charger
- Manual/Autostart control panel
- Fuel level meter
- Controller power switch
- Alarm buzzer
SOUND ATTENUATED ENCLOSURE
- Highly Corrosion Resistant Construction
- Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer
OPTIONS
- Single axle trailer
- Remote Monitoring System (4G, WIFI)
- Power Sockets (CEE or AUS standard)
- Remote Monitoring System (4G, WIFI)
- ATS (for automatic start & stop when electricity power off & on)
- 12 hours fuel tank
- 24 hours fuel tank
WARRANTY
12 months or 1000 working hours, whichever comes first
