- Cooling System Type : Water Cooling System
- Rated Current : 41A
- Rated Voltage : 220 V, 230 V, 380V/440/415V, 400/230V
- Starting System : 12V DC Electric Start, 24V DC Electric Start
- Model Number : WP 20 F
- Brand Name : FAW
- Place of Origin : Shandong, China
- Frequency : 50/60HZ
- Options : ATS
- Protection : Automatic Voltage Regulation, Low Oil Shutdown, Overload Protection, Under-Voltage Protection
- Speed : 1500/1800RMP
- Type : Silent Type, Container Type, Super Silent Type, Open Frame, Container
- Weight : 600KG
- Certification : CE ISO
- Product Name : Diesel Generator Set
- Alternator : Original Stamford
- Color : Blue
- ATS : Yes
- Warranty : 3months-1year

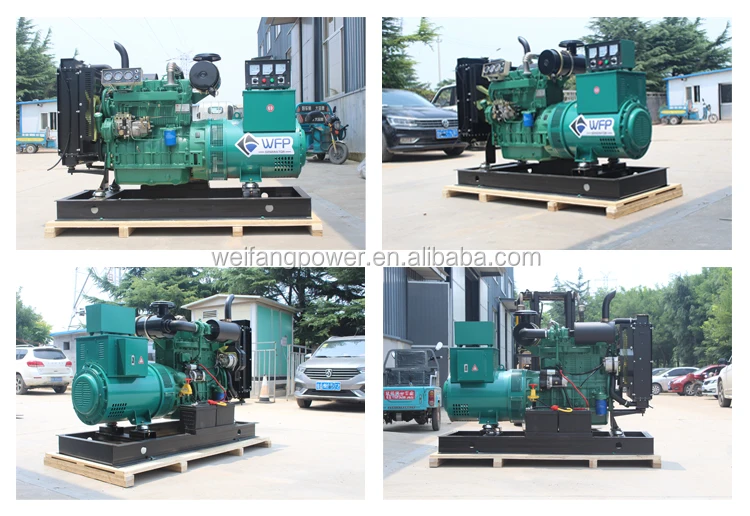

WFP brand super silent diesel generator Equipped with (UK) Ricardo diesel engine
Product Description
* Our Main Products
* Optional Automatic Control Digital System
1) Brand: Deepsea, Harsen, Smartgen, etc.
2) Adopt Genset controller with LCD display, taking microprocessor as the core.
3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated
electricity /grid electricity.
4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,
accumulative total power and number of starts.
5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over
voltage, over frequency and phase failure etc.
2) Adopt Genset controller with LCD display, taking microprocessor as the core.
3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated
electricity /grid electricity.
4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,
accumulative total power and number of starts.
5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over
voltage, over frequency and phase failure etc.
Specification
Generator
|
Model |
WP30GF |
Frequency(HZ) |
50hz/60hz |
|
Rated. AC voltage(v) |
120, 220, 230, 240, 380, 400 |
|
Generator |
Phase |
Single phase or Three phase |
Starting system |
Electric |
|
Fuel tank capacity(L) |
Average 8 hours base fuel tank |
|
Radiator |
40℃ for open type, 50℃ for silent type |
|
Tool Kits & Manuals
|
Standard tool kits and complete operation/maintenance/manuals for Generator/Engine/Alternator/control panel, etc. |
Optional Features
|
DC circuit breaker |
Optional
|
Calculagraph |
||
Big Wheel |
||
Three phase voltage |
||
Current meter |
||
ATS |
||
Remote control |
||
Welding |
Company Profile
Weifang Power Machinery Equipment Co.,Ltd is based in the world beautiful kite city---Weifang City, Shandong Province, mainly engaged in R&D, producing and marketing of all kinds of diesel generator, gas generator and diesel water pump sets. Power Machinery annual production of various types of gen-sets is more than 5000 units, power coverage 10—2000kw. It is coupled by world famous brand engine such as Perkins, Cummins, Deutz, Weichai, Yuchai etc with world famous brand alternator such as Stamford, Marathon, Simense etc. It currently widely used in the national defense, telecommunications, petroleum, medical, plateau, railway, wilderness rescue, agriculture and other fields.
