Cooling System Type : Water Cooling System
-
Rated Current : 54A
-
Rated Voltage : 220 V, 240 V, 400 V, 380 V, 415 V, 440 V
-
Starting System : Auto Start, 12V DC Electric Start, 24V DC Electric Start, Remote Start
-
Model Number : PKU20
-
Brand Name : GensetPlus
-
Place of Origin :China
-

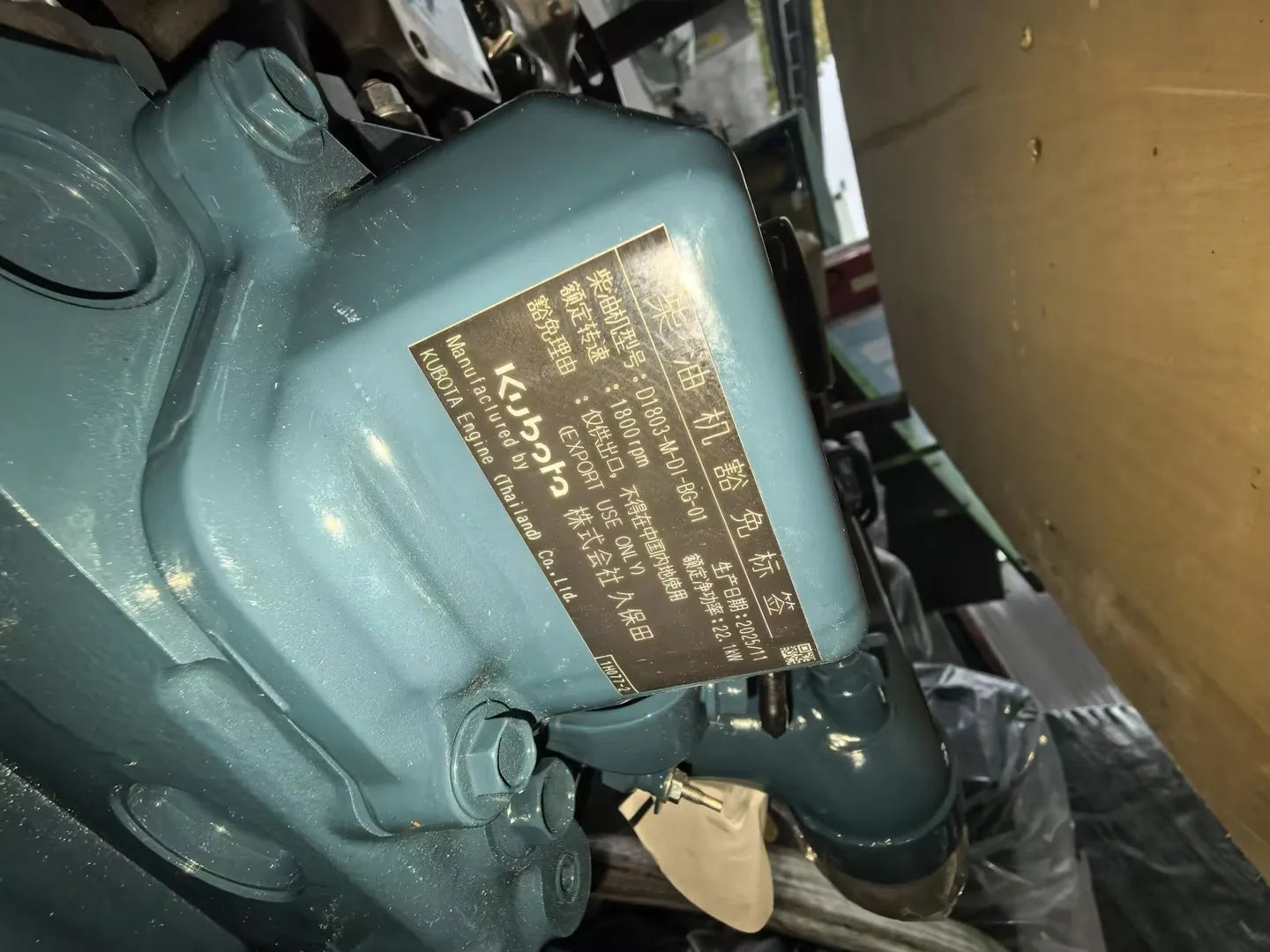

Engine Brand : Kubota
-
Frequency : 50 Hz, 60 Hz, 50/60HZ
-
Efficiency : 0.8
-
Options : Remote Control, Rainproof Canopy, Soundproof Canopy, Mobile Trailer
-
Protection : Low Oil Shutdown, Overload Protection, Under-Voltage Protection, Automatic Voltage Regulation
-
Speed : 1500/1800RMP
-
Type : Silent Type, Portable Type, Mobile Type, Canopy Type, Super Silent Type, Trailer Type
-
Weight : 1160
-
Application : Commercial, Industrial, Hospital, Mining, Marine, Residential, Oil & Gas, Construction Site, Data Center, Telecom Base Station, Hybrid Solar Backup, Industry Electricity Generation
-
Alternator brand : Stamford Marathon Leroysomer
-
Warranty : 12 Months/1000 Hours
-
Fuel Tank Capacity : 8-10hours/12hours/24hours
-
Certification : CE/ISO9001/ISO14001
-
Package : Plywood
-
Noise level : 65dBA@7m(no Load)
-
Phase : Single Phase\Three Phase
-
ATS : AISIKAI
-
Controller : Smartgen / DeepSea
1.All design for open frame, silent, supper silent, soundproof, trailer, container type
2.Engine brand : Cummins, Perkins , Weichai ,MTU, Deutz , Doosan, SDEC, Yarman, Isuzu, FAW, , Weichai, Baudouin, Ricardo and others optional.

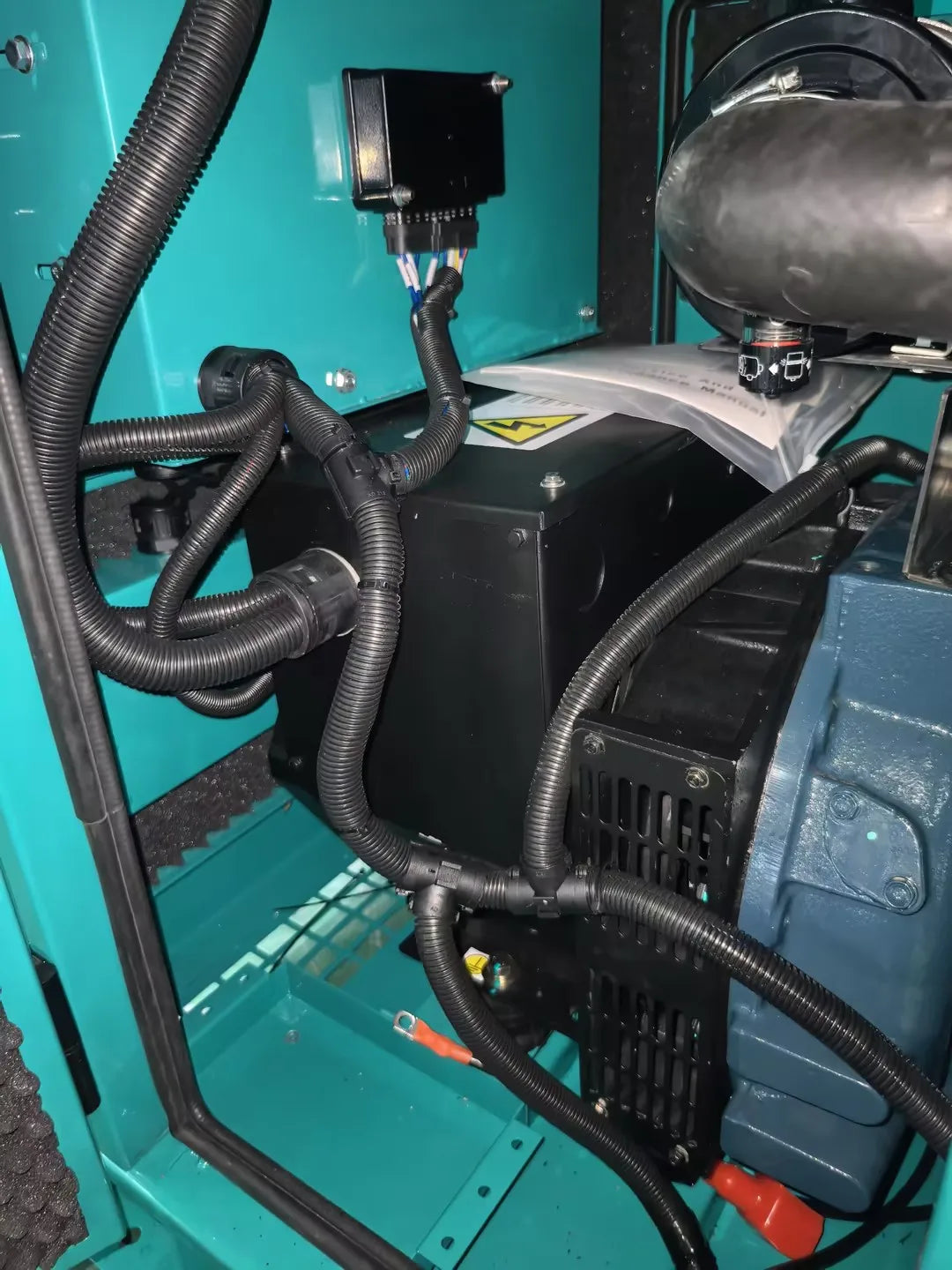

3. Alternator - Optional Stamford, Leroy Somer, Kaijieli, 100% copper alternator
4.System: control system, ATS system, remote control system, parallel operation system

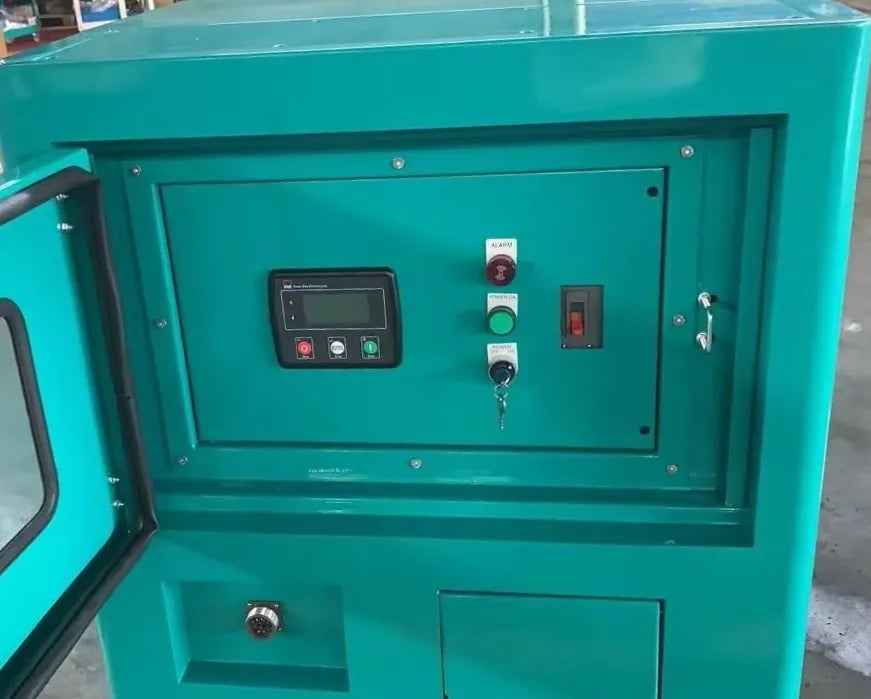

5.Control panel : Smartgen , Deepsea,alte including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
6.Radiator :Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
7.Material: high density sound-absorbing material -- sound insulation, fireproofing, easy maintenance
8.Battery:Generator diesel 12V/ 24V DC battery with charger, battery connects wire
9.Fuel tank:Generator diesel 10-48 hours fuel tank with fuel indicator, long time for working.

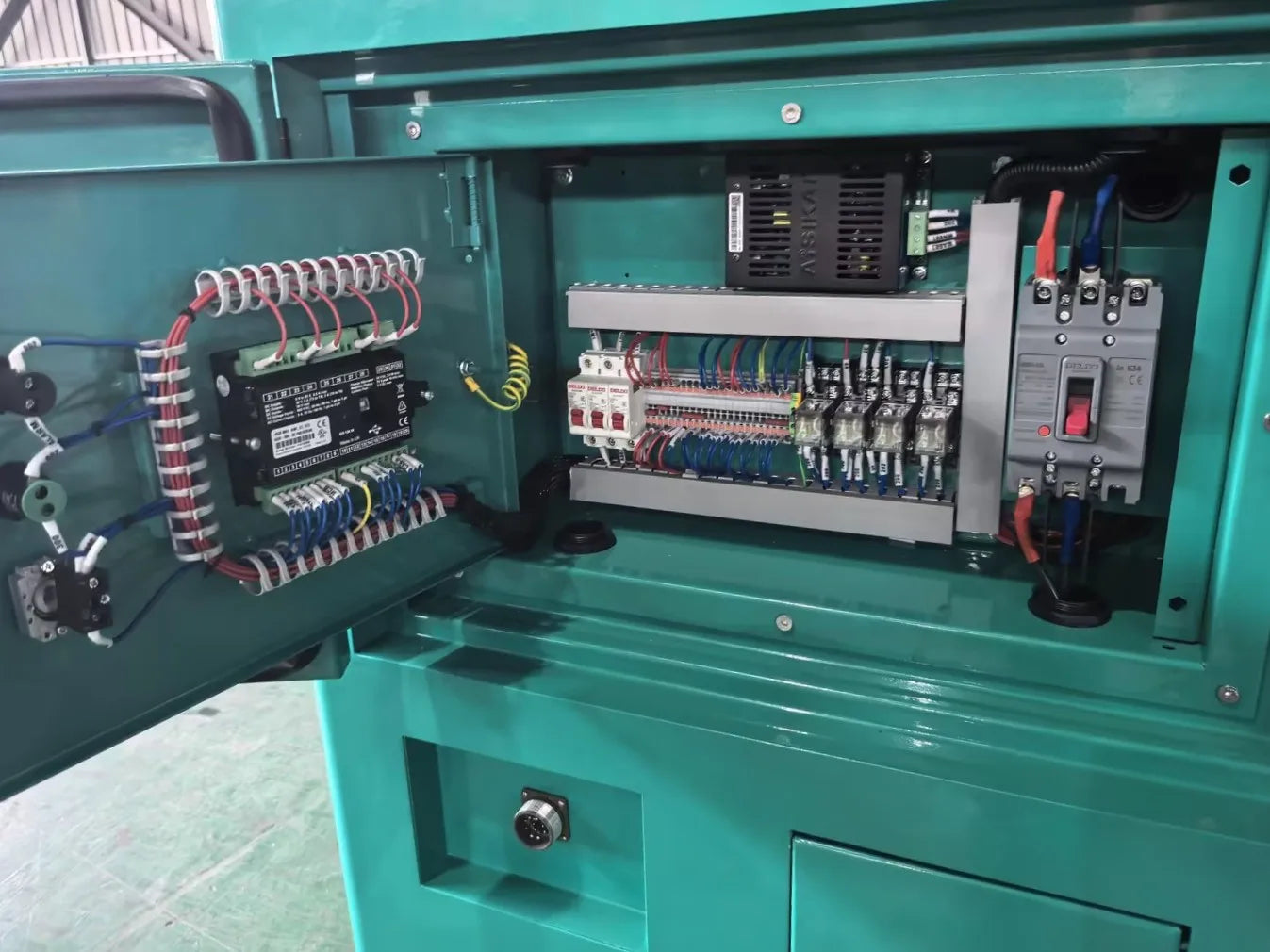

10.Protection :Genset High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
11.The generator factory holds certificates such as CE, ISO, and EPA.
12.The generator factory has many years of production and sales experience, as well as overseas export experience.
